Specifikace

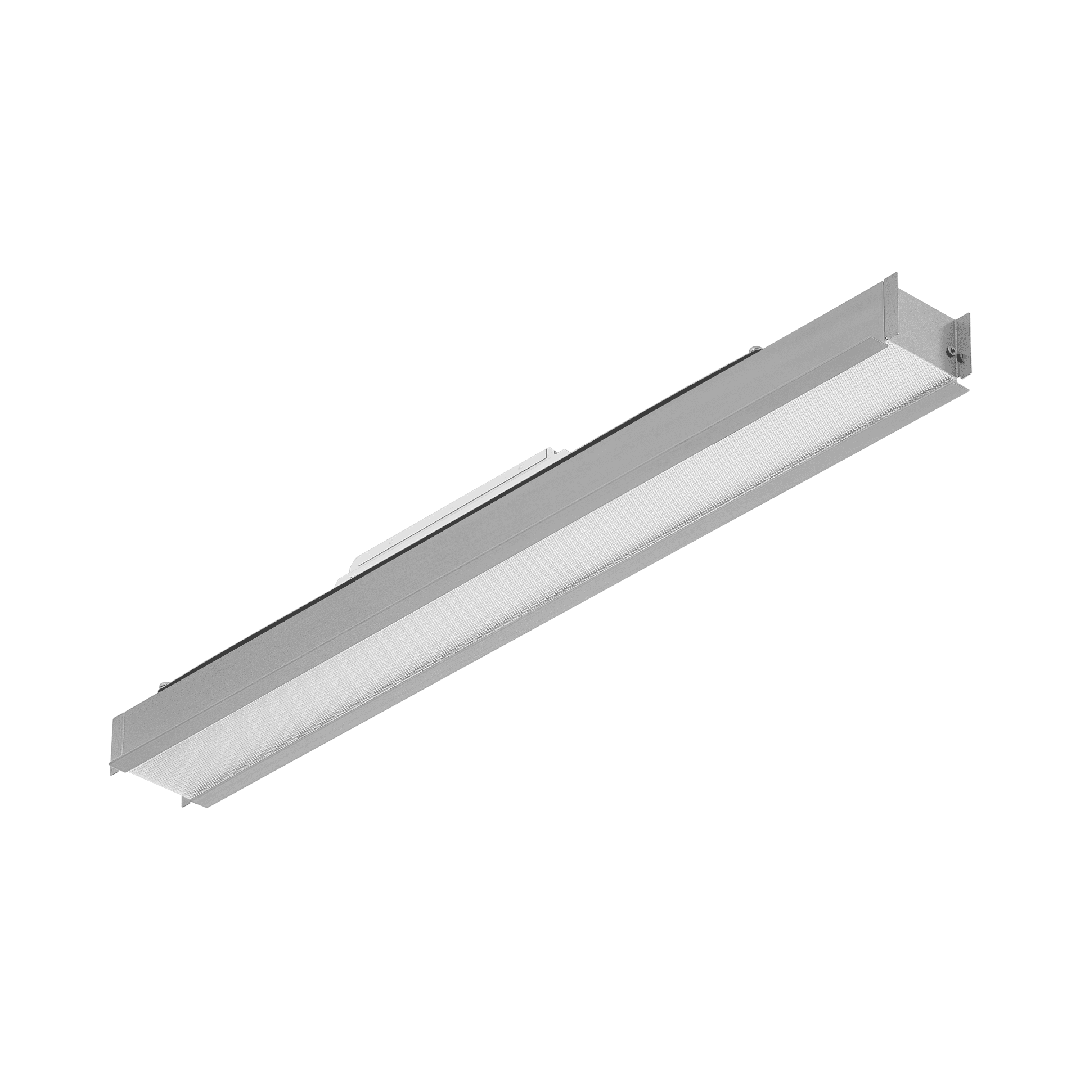

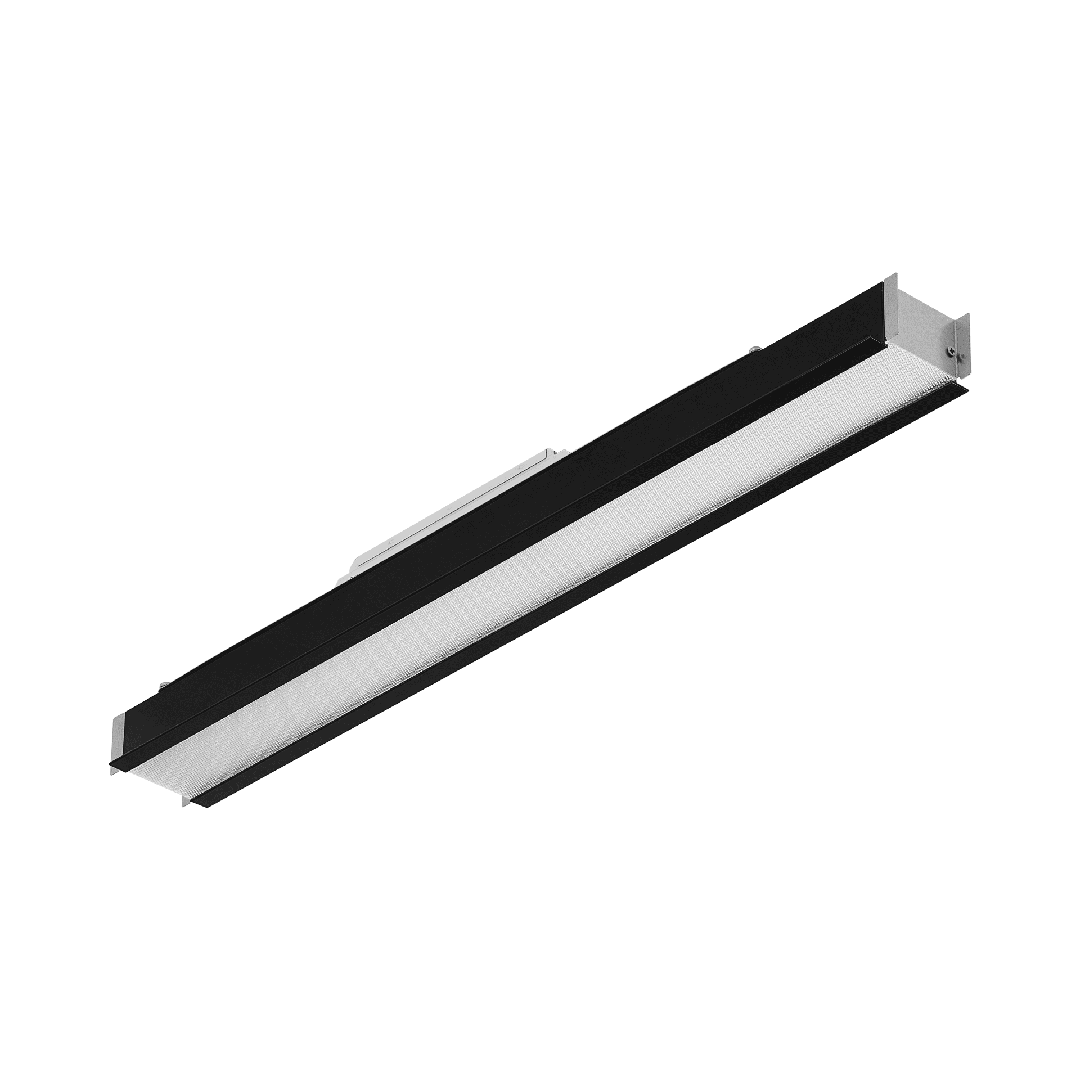

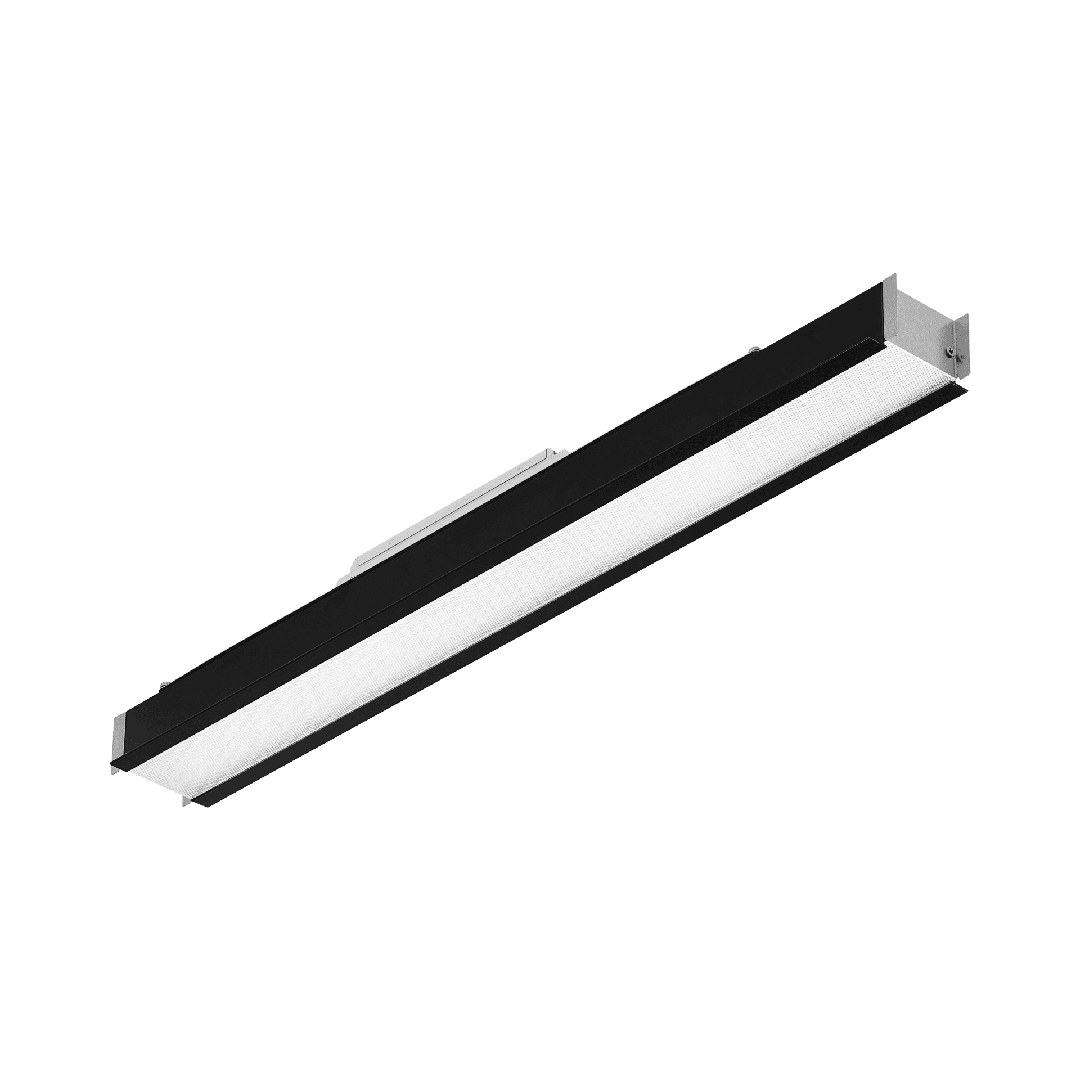

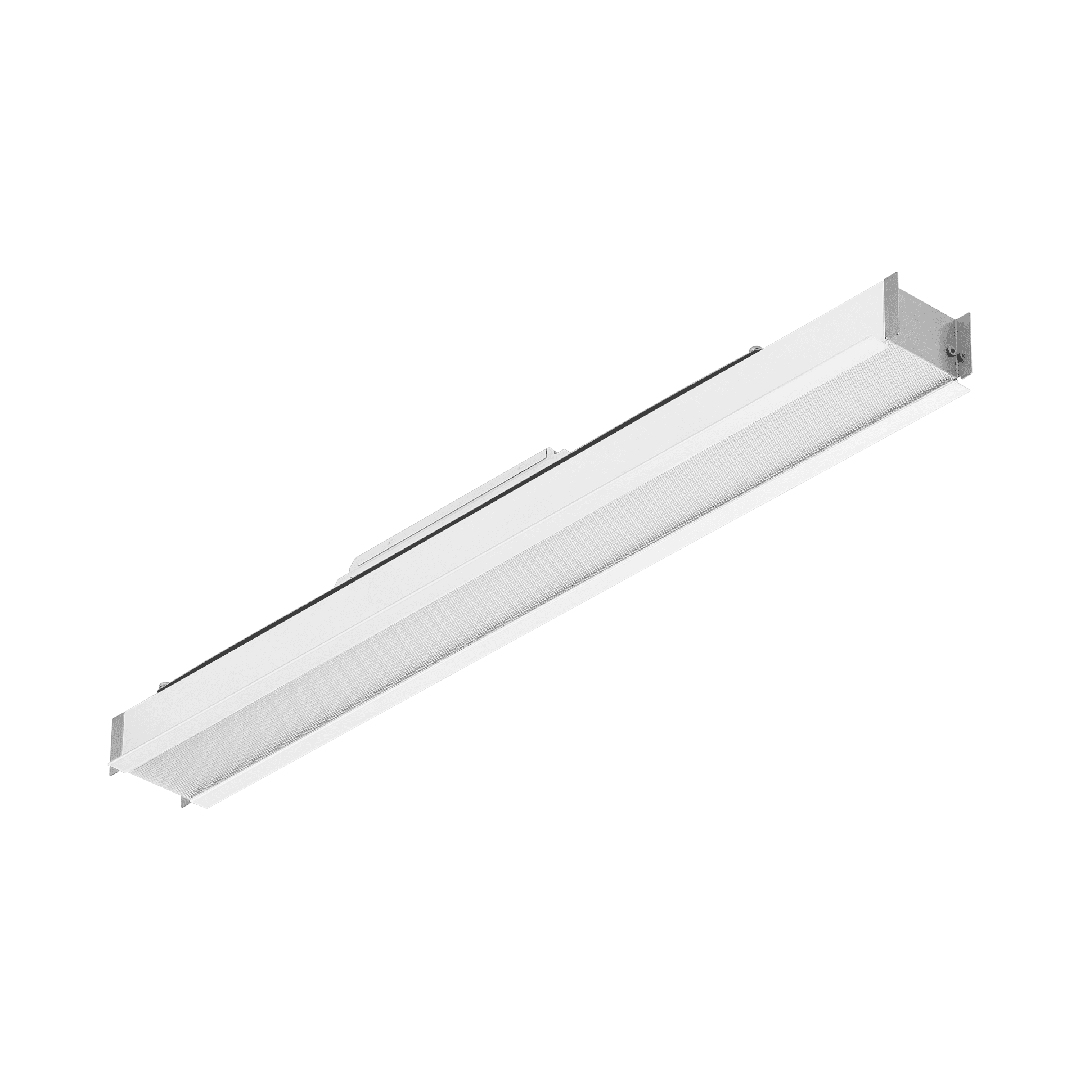

Vestavné svítidlo s klasickými proporcemi a moderním designem, určené k instalaci do modulárních stropů. Svítidlo je k dispozici ve třech délkách: 595 mm, 1195 mm, 1795 mm. Kryt svítidla je vyroben z eloxovaného hliníkového profilu v šedé barvě nebo z hliníkového profilu lakovaného bílou nebo černou barvou (jiné barvy jsou k dispozici na vyžádání). Optický systém má podobu speciálního pružného opálového difuzoru, který rovnoměrně osvětluje svítidlo, s prizmatickým difuzorem PRM. Svítidlo je vybaveno kompletním montážním systémem umožňujícím rychlou a snadnou instalaci do modulárních stropů (SM).

Aplikace

Svítidlo je určeno pro vnitřní použití. Používá se jako zdroj hlavního světla a je vhodné pro kancelářskou práci vyžadující soustředění zraku. Klasický design, energeticky úsporné LED moduly a možnost spolupráce s externími systémy řízení osvětlení ve standardu DALI předurčují svítidlo k použití v moderních kancelářských budovách třídy A+, se zvláštním zřetelem na reprezentativní místnosti, konferenční sály, chodby.

Options
Rated power of the luminaire [W]Colour temperature [K]Luminous flux [lm]Diffuser typeColour of the bodyDIMM DALIDimensions [mm]Index
1193/69/60
18 4000 1900 OPAL grey - 1193/69/60 928246
18 4000 1900 PRM grey - 1193/69/60 928253
18 4000 1900 OPAL white - 1193/69/60 928284
18 4000 1900 PRM white - 1193/69/60 928291
18 4000 1900 OPAL black - 1193/69/60 928321
18 4000 1900 PRM black - 1193/69/60 928338
18 4000 1900 OPAL grey yes 1193/69/60 928369
18 4000 1900 PRM grey yes 1193/69/60 928376
18 4000 1900 OPAL white yes 1193/69/60 928406
18 4000 1900 PRM white yes 1193/69/60 928413
18 4000 1900 OPAL black yes 1193/69/60 928444
18 4000 1900 PRM black yes 1193/69/60 928451
18 3000 1800 OPAL grey - 1193/69/60 928963
18 3000 1800 PRM grey - 1193/69/60 928970
18 3000 1800 OPAL white - 1193/69/60 929007
18 3000 1800 PRM white - 1193/69/60 929014
18 3000 1800 OPAL black - 1193/69/60 929045
18 3000 1800 PRM black - 1193/69/60 929052
18 3000 1800 OPAL grey yes 1193/69/60 929083
18 3000 1800 PRM grey yes 1193/69/60 929090
18 3000 1800 OPAL white yes 1193/69/60 929120
18 3000 1800 PRM white yes 1193/69/60 929137
18 3000 1800 OPAL black yes 1193/69/60 929168
18 3000 1800 PRM black yes 1193/69/60 929175
30 4000 3000 OPAL grey - 1193/69/60 928260
30 4000 3000 PRM grey - 1193/69/60 928277
30 4000 3000 OPAL white - 1193/69/60 928307
30 4000 3000 PRM white - 1193/69/60 928314
30 4000 3000 OPAL black - 1193/69/60 928345
30 4000 3000 PRM black - 1193/69/60 928352
30 4000 3000 OPAL grey yes 1193/69/60 928383
30 4000 3000 PRM grey yes 1193/69/60 928390
30 4000 3000 OPAL white yes 1193/69/60 928420
30 4000 3000 PRM white yes 1193/69/60 928437
30 4000 3000 OPAL black yes 1193/69/60 928468
30 4000 3000 PRM black yes 1193/69/60 928475
30 3000 2800 OPAL grey - 1193/69/60 928987
30 3000 2800 PRM grey - 1193/69/60 928994
30 3000 2800 OPAL white - 1193/69/60 929021
30 3000 2800 PRM white - 1193/69/60 929038
30 3000 2800 OPAL black - 1193/69/60 929069
30 3000 2800 PRM black - 1193/69/60 929076
30 3000 2800 OPAL grey yes 1193/69/60 929106
30 3000 2800 PRM grey yes 1193/69/60 929113
30 3000 2800 OPAL white yes 1193/69/60 929144
30 3000 2800 PRM white yes 1193/69/60 929151
30 3000 2800 OPAL black yes 1193/69/60 929182
30 3000 2800 PRM black yes 1193/69/60 929199
1793/69/60
26 4000 2700 OPAL grey - 1793/69/60 928482
26 4000 2700 PRM grey - 1793/69/60 928499
26 4000 2700 OPAL white - 1793/69/60 928529
26 4000 2700 PRM white - 1793/69/60 928536
26 4000 2700 OPAL black - 1793/69/60 928567
26 4000 2700 PRM black - 1793/69/60 928574
26 4000 2700 OPAL grey yes 1793/69/60 928604
26 4000 2700 PRM grey yes 1793/69/60 928611
26 4000 2700 OPAL white yes 1793/69/60 928642
26 4000 2700 PRM white yes 1793/69/60 928659
26 4000 2700 OPAL black yes 1793/69/60 928680
26 4000 2700 PRM black yes 1793/69/60 928697
26 3000 2558 OPAL grey - 1793/69/60 929205
26 3000 2558 PRM grey - 1793/69/60 929212
26 3000 2558 OPAL white - 1793/69/60 929243
26 3000 2558 PRM white - 1793/69/60 929250
26 3000 2558 OPAL black - 1793/69/60 929281
26 3000 2558 PRM black - 1793/69/60 929298
26 3000 2558 OPAL grey yes 1793/69/60 929328
26 3000 2558 PRM grey yes 1793/69/60 929335
26 3000 2558 OPAL white yes 1793/69/60 929366
26 3000 2558 PRM white yes 1793/69/60 929373
26 3000 2558 OPAL black yes 1793/69/60 929403
26 3000 2558 PRM black yes 1793/69/60 929410
45 4000 4500 OPAL grey - 1793/69/60 928505
45 4000 4500 PRM grey - 1793/69/60 928512
45 4000 4500 OPAL white - 1793/69/60 928543
45 4000 4500 PRM white - 1793/69/60 928550
45 4000 4500 OPAL black - 1793/69/60 928581
45 4000 4500 PRM black - 1793/69/60 928598
45 4000 4500 OPAL grey yes 1793/69/60 928628
45 4000 4500 PRM grey yes 1793/69/60 928635
45 4000 4500 OPAL white yes 1793/69/60 928666
45 4000 4500 PRM white yes 1793/69/60 928673
45 4000 4500 OPAL black yes 1793/69/60 928703
45 4000 4500 PRM black yes 1793/69/60 928710
45 3000 4200 OPAL grey - 1793/69/60 929229
45 3000 4200 PRM grey - 1793/69/60 929236
45 3000 4200 OPAL white - 1793/69/60 929267
45 3000 4200 PRM white - 1793/69/60 929274
45 3000 4200 OPAL black - 1793/69/60 929304
45 3000 4200 PRM black - 1793/69/60 929311
45 3000 4200 OPAL grey yes 1793/69/60 929342
45 3000 4200 PRM grey yes 1793/69/60 929359
45 3000 4200 OPAL white yes 1793/69/60 929380
45 3000 4200 PRM white yes 1793/69/60 929397
45 3000 4200 OPAL black yes 1793/69/60 929427
45 3000 4200 PRM black yes 1793/69/60 929434
593/69/60
9 4000 900 OPAL grey - 593/69/60 928000
9 4000 900 PRM grey - 593/69/60 928017
9 4000 900 OPAL white - 593/69/60 928048
9 4000 900 PRM white - 593/69/60 928055
9 4000 900 OPAL black - 593/69/60 928086
9 4000 900 PRM black - 593/69/60 928093
9 4000 900 OPAL grey yes 593/69/60 928123
9 4000 900 PRM grey yes 593/69/60 928130
9 4000 900 OPAL white yes 593/69/60 928161
9 4000 900 PRM white yes 593/69/60 928178
9 4000 900 OPAL black yes 593/69/60 928208
9 4000 900 PRM black yes 593/69/60 928215
9 3000 850 OPAL grey - 593/69/60 928727
9 3000 850 PRM grey - 593/69/60 928734
9 3000 850 OPAL white - 593/69/60 928765
9 3000 850 PRM white - 593/69/60 928772
9 3000 850 OPAL black - 593/69/60 928802
9 3000 850 PRM black - 593/69/60 928819
9 3000 850 OPAL grey yes 593/69/60 928840
9 3000 850 PRM grey yes 593/69/60 928857
9 3000 850 OPAL white yes 593/69/60 928888
9 3000 850 PRM white yes 593/69/60 928895
9 3000 850 OPAL black yes 593/69/60 928925
9 3000 850 PRM black yes 593/69/60 928932
16 4000 1500 OPAL grey - 593/69/60 928024
16 4000 1500 PRM grey - 593/69/60 928031
16 4000 1500 OPAL white - 593/69/60 928062
16 4000 1500 PRM white - 593/69/60 928079
16 4000 1500 OPAL black - 593/69/60 928109
16 4000 1500 PRM black - 593/69/60 928116
16 4000 1500 OPAL grey yes 593/69/60 928147
16 4000 1500 PRM grey yes 593/69/60 928154
16 4000 1500 OPAL white yes 593/69/60 928185
16 4000 1500 PRM white yes 593/69/60 928192
16 4000 1500 OPAL black yes 593/69/60 928222
16 4000 1500 PRM black yes 593/69/60 928239
16 3000 1400 OPAL grey - 593/69/60 928741
16 3000 1400 PRM grey - 593/69/60 928758
16 3000 1400 OPAL white - 593/69/60 928789
16 3000 1400 PRM white - 593/69/60 928796
16 3000 1400 OPAL black - 593/69/60 928826
16 3000 1400 PRM black - 593/69/60 928833
16 3000 1400 OPAL grey yes 593/69/60 928864
16 3000 1400 PRM grey yes 593/69/60 928871
16 3000 1400 OPAL white yes 593/69/60 928901
16 3000 1400 PRM white yes 593/69/60 928918
16 3000 1400 OPAL black yes 593/69/60 928949
16 3000 1400 PRM black yes 593/69/60 928956
